This knowledge article may contain information that does not apply to version 21.05 or later which runs in a container environment. Please refer to Article Number 000385088 for more information about troubleshooting BMC products in containers.

Summary:
BMC Remedy Single Sign On Service Provider (SP) certificate shipped with the product which is used to sign SAML request will expire on April 21st 2016. This only applies to RSSO version 9.1 SP1 and below.

If you are using BMC Remedy Single Sign On with SAML authentication and signing the SAML requests to ADFS or your IdP, then these requests will fail. In order to overcome this problem, please find attached a document that will assist in updating BMC Remedy Single Sign On SP Certificate. If this certificate already been replaced with a newer one with a valid expiry date, you don't have to follow this document. An easy way to find the certificate expiry is by logging to ADFS and checking the RSSO service provider relying party properties. In the Signature tab, you should see the certificate expiry date. Likewise, for other IdP tools that you are using with RSSO, you will have to contact your IdP administrator to check the RSSO relying party certificate expiry date.
If there are any additional queries beyond this KA then please reach out to BMC Support.

What steps are necessary to update BMC Remedy Single Sign On (RSSO) SP Certificate?

Notes:
(A) The below instructions are written for Windows OS. All paths mentioned below are for Windows OS. Please use relative paths if you're using Linux or Solaris OS.

(B) The file name for the java keystore should be cot.jks.  The alias for java keystore (cot.jks) should be test2.

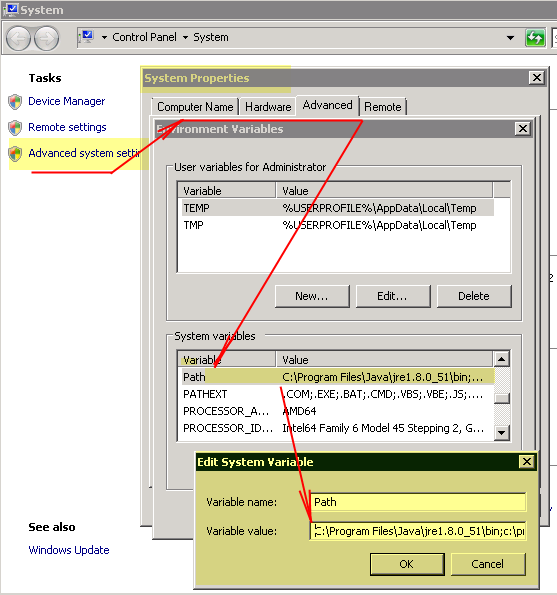

(C) Please make sure to set the Path environment to jdk or jre bin folder or else you may get error like ‘unknown internal or external command’. In Windows this means that you'll need to edit the System Environment properties and find the global variable PATH to update it.



Steps to update the cert:

1. Update java keystore named cot.jks

- Perform following steps on the machine installed with RSSO server
a. Take a backup of existing cot.jks from <tomcat>\rsso\WEB-INF\classes folder

b. Delete alias ‘test2’ from existing cot.jks using keytool command line:

keytool -delete -alias test2 -keystore cot.jks

Note:  The password for the cot.jks is "changeit"

c. Create a new keypair with alias ‘test2’ in existing cot.jks

keytool -keystore cot.jks -genkey -alias test2 -keyalg RSA -sigalg SHA256withRSA -keysize 2048 -validity 730

d. Export ‘test2’ certificate in PEM format

keytool -export -keystore cot.jks -alias test2 -file test2.pem -rfc

e. Take a backup of the updated cot.jks

- If you have other RSSO server instances in same cluster, replace cot.jks in <tomcat>\rsso\ rsso\WEB-INF\classes folder with the updated cot.jks in step 1.e


2. Update signing certificate in RSSO Admin console

a. Login RSSO Admin console

b. Go to ‘General->Advanced’ tab

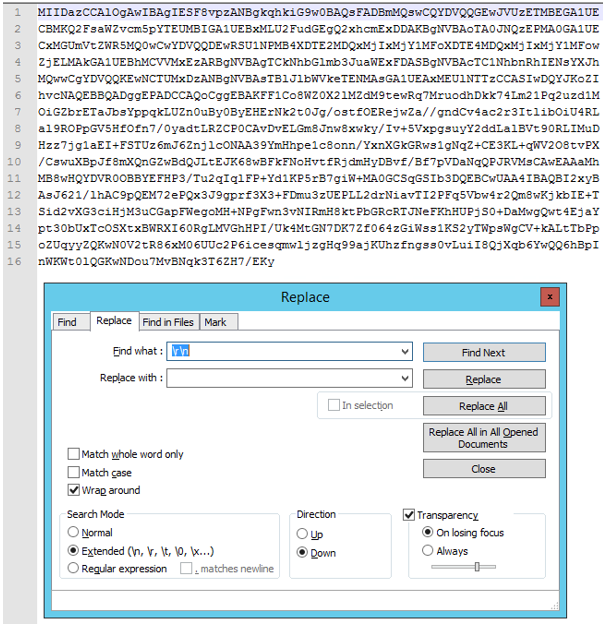

c. Open the file test2.pem which is created in step 1.d in text editor, remove the first line:

(-----BEGIN CERTIFICATE-----)

and the last line:

(-----END CERTIFICATE-----)

Also remove the newline delimiters (\r\n), and then copy the contents.
E.g. If you use Notepad++, you can open ‘replace’ dialog, select ‘Extended’ search mode, find ‘\r\n’ and click ‘Replace All’ button.

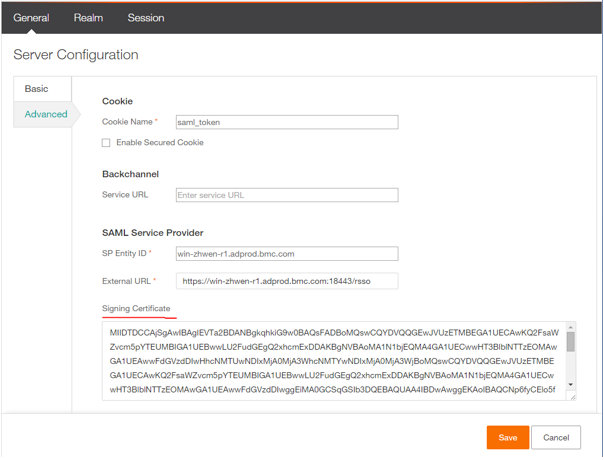

d. Paste the copied content in step 2.c to the ‘Signing Certificate’ field, replace existing content in the text area



e. Click ‘Save’ button to save the change

f. Wait for 15 seconds, view the realm using SAML, click ‘View Metadata’ button in ‘Authentication’ tab. Verify the SP metadata is updated with the new signing certificate.


3. Update SP metadata at IdP side

- Export the SP metadata in step 2.f and save it in a local file

- Send the exported SP metadata and the new signing certificate in step 1.d to IdP team for updating.

If the IdP is ADFS, the customer can add the new signing certificate as below:

a. Open ‘Properties’ dialog of the relying party for RSSO

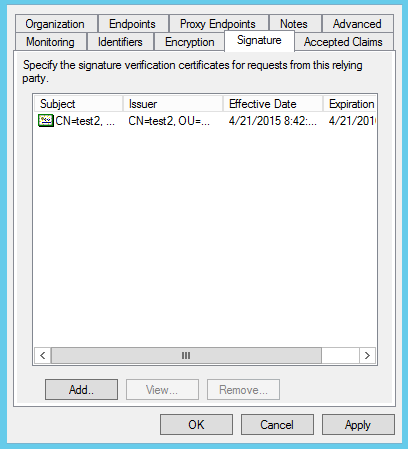

b. Go to ‘Signature’ tab
c. Click ‘Add’ button, select the new signing certificate file and click ‘OK’



NOTEs for rolling upgrades:

Should you have a requirement for zero-down time in a cluster environment (assuming ADFS is the IdP) for the signing certificate update, then you can take actions with following sequence:

1. Take one RSSO server instance down first, perform step 1 on it
2. Perform step 2
3. Perform step 3 (remember NOT to delete the old signing certificate)
4. Make the RSSO server instance up again
5. Take the second RSSO server instance down, update its cot.jks with the one already updated on first RSSO server instance in step 1.e, then make it up again
6. Repeat step 5 on all other RSSO server instances
7. After the keystore cot.jks is updated on all RSSO server instances, you can remove the old signing certificate on the RSSO relying party at ADFS side.

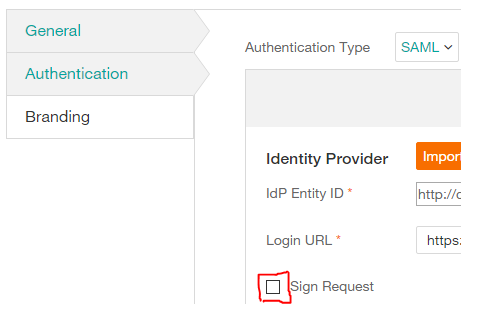

If you follow the instructions in this article but still encounter any issue caused by SP signing certificate expiry, you can turn off ‘Sign Request’ option temporarily as a workaround
