In TrueSight Capacity Optimization (TSCO) Moviri Splunk ETL fails with this message: Detected an abnormal ETL termination. Reason: java.lang.RuntimeException: Received fatal alert: protocol

Knowledge Article

Article Number

000233511

Old Article Number

000147672

Article Type

FAQ/Procedural

Title

In TrueSight Capacity Optimization (TSCO) Moviri Splunk ETL fails with this message: Detected an abnormal ETL termination. Reason: java.lang.RuntimeException: Received fatal alert: protocol_version

Summary

In TSCO, Moviri Splunk ETL fails with this message: Detected an abnormal ETL termination. Reason: java.lang.RuntimeException: Received fatal alert: protocol_version

Product

TrueSight Capacity Optimization

Component

Capacity Optimization

Applies to

TrueSight Capacity Optimization 10.7.01.11.X

Question

Configured a Splunk ETL in environment but it fails after a Splunk Search Heads upgrade to 6.3.3

<----cut---->
[2018-01-12 09:21:41] INFO Splunk Connector Core: using SSL security protocol TLSv1
[2018-01-12 09:21:41] FAILED BCO_ETL_ERR011: Detected an abnormal ETL termination. Reason: java.lang.RuntimeException: Received fatal alert: protocol_version
   at com.splunk.HttpService.send(HttpService.java:409)
   at com.splunk.Service.send(Service.java:1293)
   at com.splunk.HttpService.post(HttpService.java:308)
   at com.splunk.Service.login(Service.java:1122)
   at com.splunk.Service.login(Service.java:1101)
   at com.splunk.Service.connect(Service.java:187)
   at ETL.util.SplunkCoreME.connect(SplunkCoreME.java:137)
   at com.neptuny.cpit.etl.Engine.start(Engine.java:129)
   at com.neptuny.cpit.etl.ETLrun.main(ETLrun.java:171)
Caused by: javax.net.ssl.SSLException: Received fatal alert: protocol_version
   at sun.security.ssl.Alerts.getSSLException(Alerts.java:208)
   at sun.security.ssl.Alerts.getSSLException(Alerts.java:154)
   at sun.security.ssl.SSLSocketImpl.recvAlert(SSLSocketImpl.java:2023)
   at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1125)
   at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1375)
   at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1403)
   at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1387)
   at sun.net.www.protocol.https.HttpsClient.afterConnect(HttpsClient.java:559)
   at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(AbstractDelegateHttpsURLConnection.java:185)
   at sun.net.www.protocol.http.HttpURLConnection.getOutputStream0(HttpURLConnection.java:1283)
   at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(HttpURLConnection.java:1258)
   at sun.net.www.protocol.https.HttpsURLConnectionImpl.getOutputStream(HttpsURLConnectionImpl.java:250)
   at com.splunk.HttpService.send(HttpService.java:403)
   ... 8 more
<----cut---->

Answer

Make sure have selected the correct protocol TLSv1.2 on the ETL as TLSv1 is obsolete in Java 1.8. So,the ETL configuration was set to use TLSv1.

For Java 1.8, which is the version used by TSCO 10.7.01, the default TLS protocol is v1.2.

Java 1.6 and 1.7 default is obsoleted TLS1.0.

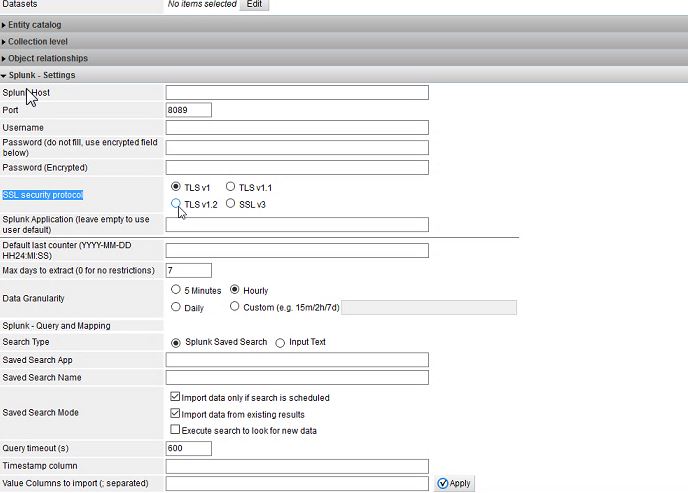

User-added image
