You can watch this video to see the necessary steps to perform this task in a demo:



Day resolution in analysis

1. Create a Performance vs. time analysis:

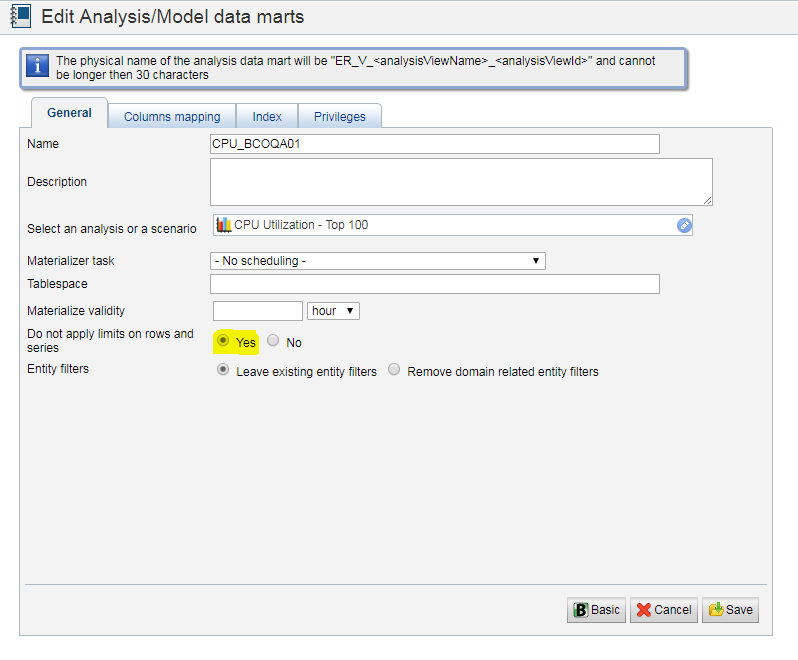

2. Create a Datamart based on the Analysis just created, set the property “Do not apply limits on rows and series” to “Yes” and save. After the creation click on materialize now.

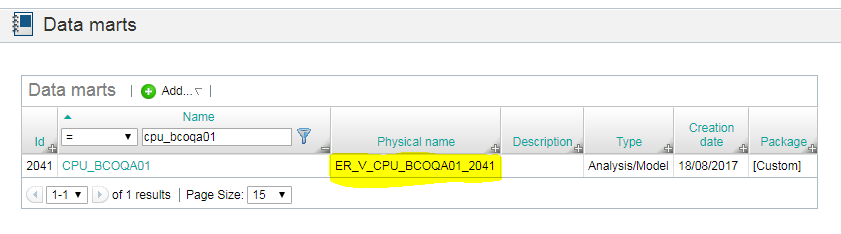

3. After the datamart is materialized use its physical name to build up the datamart to be used in the summary table template in Truesight Presentation Server.

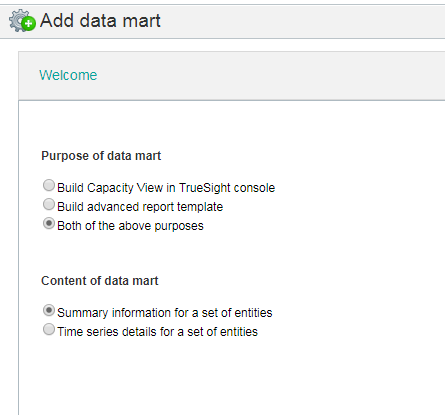

4. Create a datamart based on SQL and configure it as it follows :



5. Write up the query to get desired data and set the dependence to the datamart created before;(In the example we’re going to extract TOP 100 systems with higher Average CPU Utilization)


select
        max(entid) as sysid,
        max(entname) as entname,
        max ((Select lookupvalue
      from ENT_LOOKUP el
      where dm.entid=el.id
AND el.structureid='SYS'
AND el.lookupfield='HOSTNAME'
      FETCH NEXT 1 ROWS ONLY)) as hostname,
        avg(COALESCE(cpu_utilization,0)) as avg_cpu_util,
        max(COALESCE(cpu_utilization,0)) as max_cpu_util,
        min(COALESCE(cpu_utilization,0)) as min_cpu_util,
        stddev(COALESCE(cpu_utilization,0)) as stddev_cpu_util,
        count(entname) as count_cpu_util
    from
        [PHYSICALNAME_DATAMART_CPU] dm    FETCH NEXT 100 ROWS ONLY

Where:
[PHYSICALNAME_DATAMART_CPU] is the physical name described at point 3
100 is the number of systems retrieved – in this case 100 since we’re extracting TOP100 systems

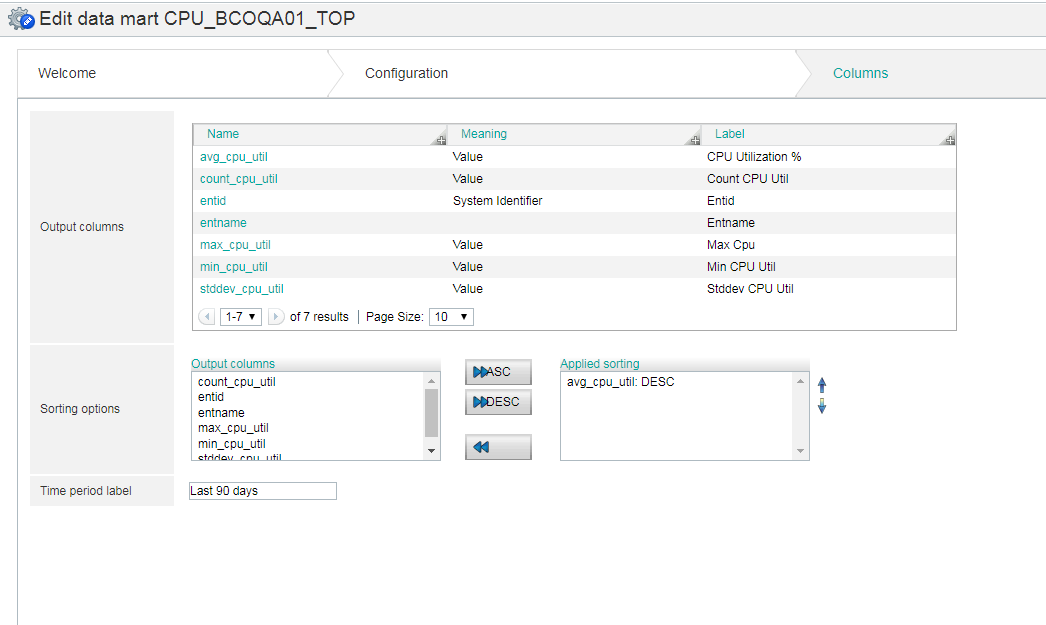

6. Click on the system id and set the meaning “system identifier”, for fields related to a metric set the meaning “value”.  You can specify also labels and descriptions of fields and these will be shown in the table columns header. Set a sorting option to see default sorted table in Truesight Presentation Server.



7. Create a Summary table template


Documentation References:

• Create a Summary table template
• Creating an Analysis and Model data mart
• Creating a SQL-based data mart for an advanced report template and a view in the TrueSight console

NOTE : Step of the creation of entity filter based on a search is optional.
