PATROL Agent Installer - Installation fails with errors about No existing security files

Knowledge Article

Article Number

000374706

Old Article Number

Article Type

Solutions to a Product Problem

Title

PATROL Agent Installer - Installation fails with errors about No existing security files

Summary

PATROL Agent Installer - Installation fails with errors about No existing security files

Product

PATROL Agent

Component

PATROL Installation Utility

Applies to

Problem

Installation log InstallLog-xxx-error shows:
/bin/sh: /opt/bmc/common/security/bin_v3.0/linux-2-6-x86-64-nptl/cfg_sec_prms: No such file or directory
/bin/sh: /opt/bmc/Patrol3/Linux-2-6-x86-64-nptl/bin/setda: No such file or directory
/bin/sh: /opt/bmc/Patrol3/Linux-2-6-x86-64-nptl/bin/pcnfg_script: No such file or directory
/bin/sh: /opt/bmc/Patrol3/Linux-2-6-x86-64-nptl/bin/pcnfg_script: No such file or directory

hostname_3181_install.log-display shows below:
Installation/upgrade failed.
The user log contains the following fatal errors:
The specified script [/opt/bmc/common/security/bin_v3.0/linux-2-6-x86-64-nptl/cfg_sec_prms /opt/bmc/common/security/config_v3.0/patconf.conf /opt/bmc/common/patrol.d/patrol.conf] does not exist.
Invalid script path [%{/BMC/BASE}security/bin_v3.0/linux-2-6-x86-64-nptl/cfg_sec_prms %{/BMC/BASE}security/config_v3.0/patconf.conf %{/BMC/BASE}patrol.d/patrol.conf].
Unable to execute script [%{/BMC/BASE}security/bin_v3.0/linux-2-6-x86-64-nptl/cfg_sec_prms %{/BMC/BASE}security/config_v3.0/patconf.conf %{/BMC/BASE}patrol.d/patrol.conf] for product [sec_conf_unixv3].
Refer to the install log file for more details.
Unable to execute script [/opt/bmc/Patrol3/post_check.sh] for product [PATagentCfg].
Refer to the install log file for more details.

Cause

Architecture conflict

Solution

During package creation please make sure Platform selected is correct validating with uname -a command.
i.e.
$ uname -a
Linux myhost 3.10.0-957.1.3.el7.x86_64 #1 SMP Thu Nov 29 14:49:43 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux

as one can see, architecture for this machine is x64. If selected different platform like IA64 or x86 then security files may conflict. One can validate package details in install.ctl file inside bmc_products directory, if OsArch shows like below example:
[TARGET] OsType("==","Linux") OsMajorVer("==",2 ) OsArch("==","x86") PatrolReleaseVer("==","7.4")

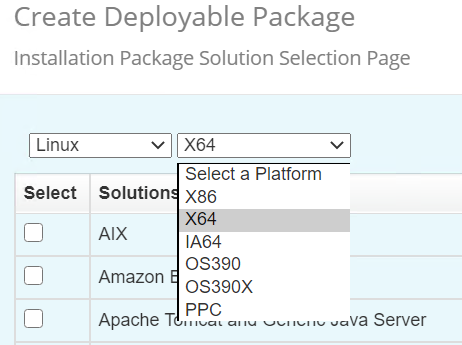

then Platform doesn't met with returned by uname command, architecture selected during package creation was x86. Please recreate package and make sure Platform met CPU architecture like below.
User-added image

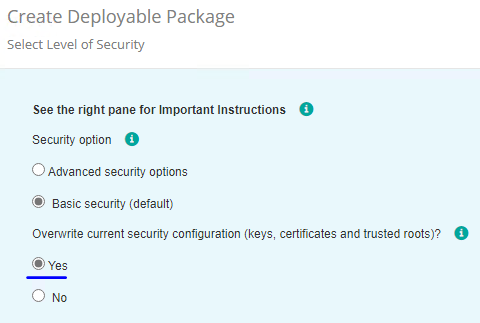

Also please make sure that "Overwrite current security configuration" is selected as "Yes"
User-added image

Once package is recreated please reinstall the agent.
Similar error is also observed when PatrolAgent or it's KM are installed on unsupported OS version.
Make sure PatrolAgent and KMs are compatible with OS.
