How to edit Standard Identification Rules or Merge Precedence in 20.02 or earlier versions without Flex UI?

This knowledge article may contain information that does not apply to version 21.05 or later which runs in a container environment. Please refer to Article Number 000385088 for more information about troubleshooting BMC products in containers.

We have added functionality to edit Standard Identification or Merge rules through New CMDB UI in 21.02 version.

For 20.02 or any older versions, you can follow the below steps:

Standard Identification Rules

- Standard identification rules are stored in RE:Automation:Identification_Rules form.
- Please open that form through Midtier & do a search with a class name for which you want to change the standard rules.

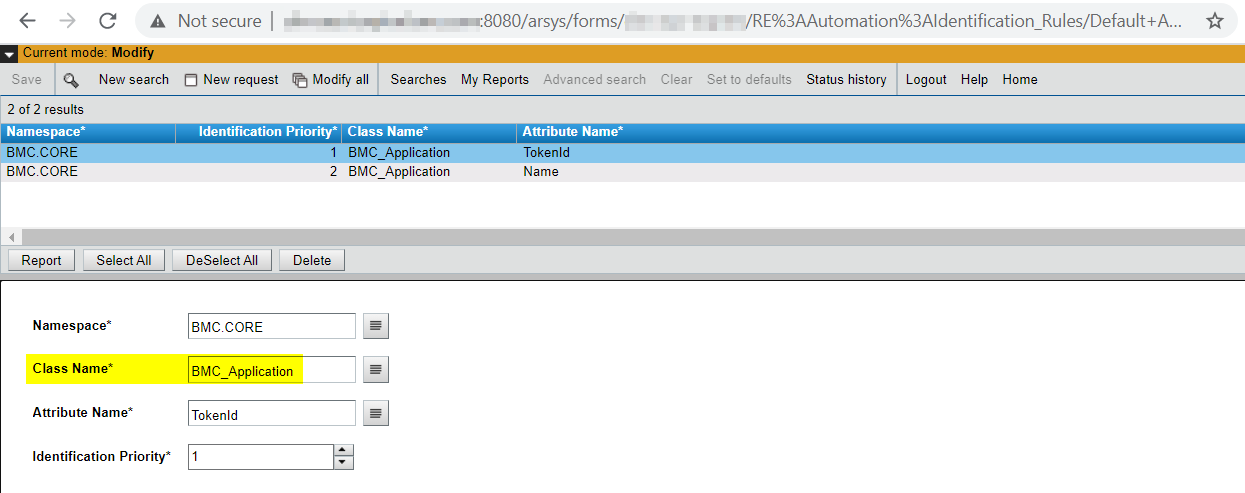

- In the below example, we did search for BMC_Application class:

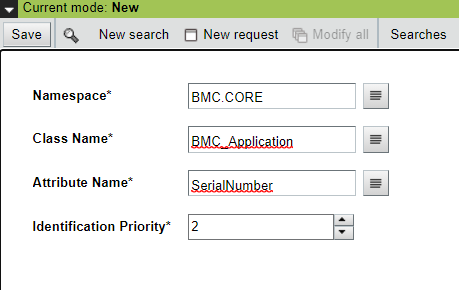

- There are already two rules defined for BMC_Application. For example, If you want to add SerialNumber at Priority 2 rule then you will have to create a new record on the same form as below:

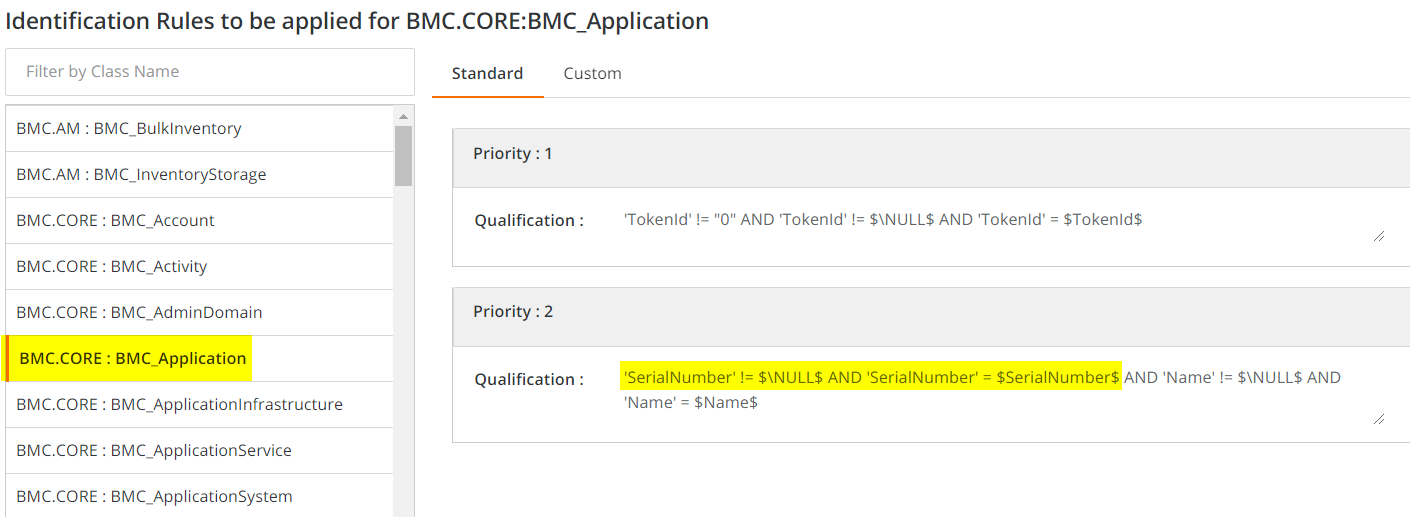

- Once you create this entry, you can see the changes in Standard Identification rules through New CMDB UI:



- If you create a new standard recon job then it will pick these rules automatically.
- To reflect these changes on the existing recon job, you will need to make a slight change to the Job.

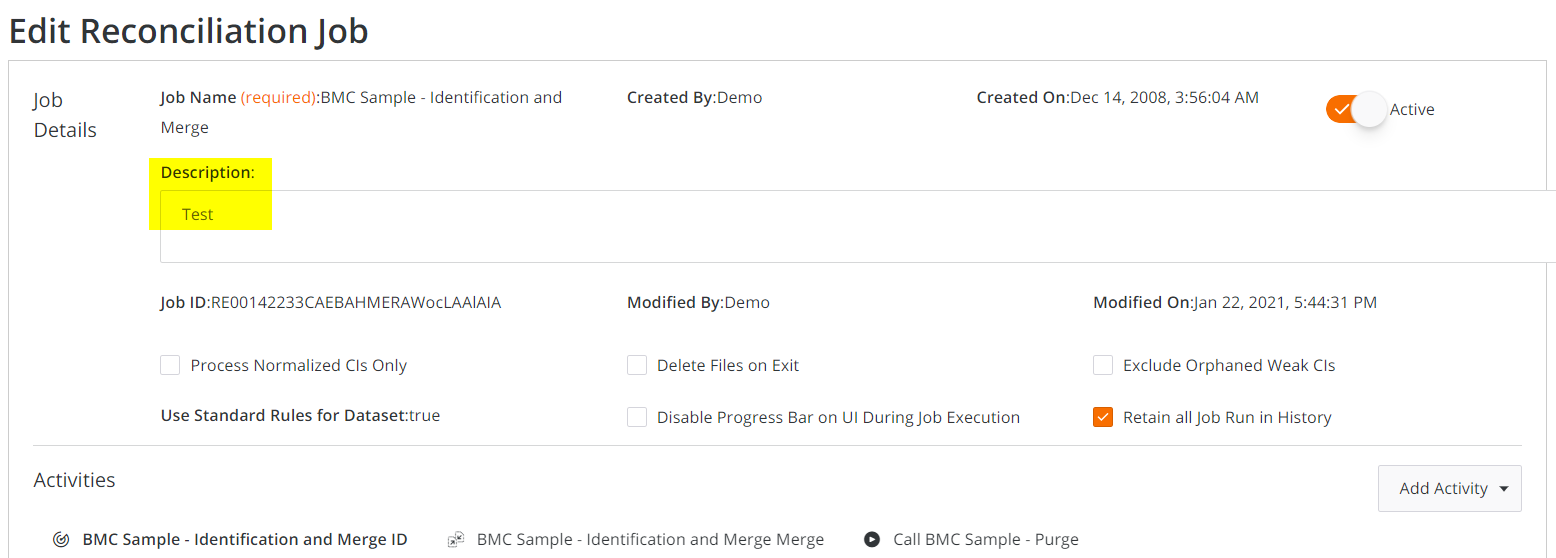

- You can just update the Description field of the Job & It should take new Identification rules:




Standard Merge Precedence

- Standard Merge Precedence values are stored in RE:Automation:Merge_Rules form.
- Please open that form through Midtier & create a new entry there with a class name or attribute for which you want to add precedence.

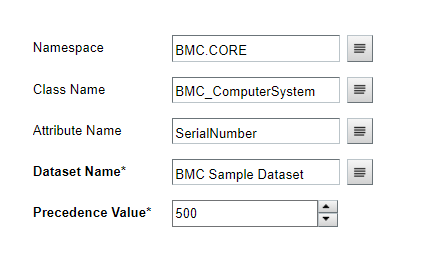

- In the below example, we are giving 500 precedence value for SerialNumber attribute in ComputerSystem class for Sample dataset:

   Note – Dataset Name* is not Dataset Id. You will have to refer BMC.CORE.CONFIG:BMC_Dataset form for name of dataset.
- If you create a new standard recon job then it will pick these precedence values automatically.
- To reflect these changes on the existing recon job, you will need to make a slight change to the Job.

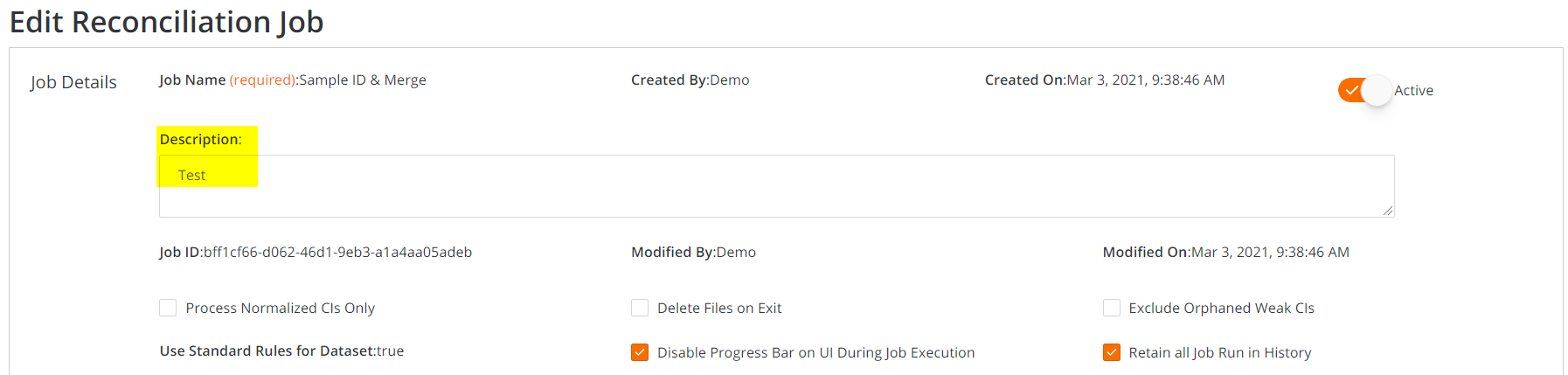

- You can just update the Description field of the Job & It should take new Identification rules:

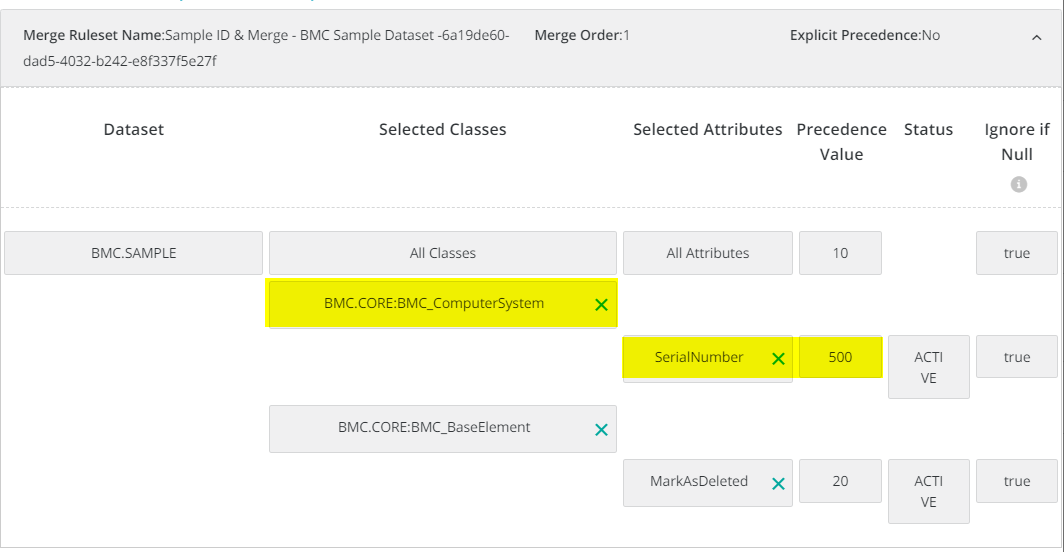

- You can open the Default merge precedence set from the Job & you should see the new precedence values there:
