Remedy AR System Server - How to assign a specific Pool to an Escalation
Remedy AR System Server - How to assign a specific Pool to an Escalation
Remedy AR System Server
Remedy AR System Server
BMC Remedy AR System Server 9.x and Higher
How to assign a specific Pool to an Escalation? In certain situations a specific Pool may need to be assigned/added to an escalation for example if we see: - Escalation(s) not being fired - Escalation(s) delays |

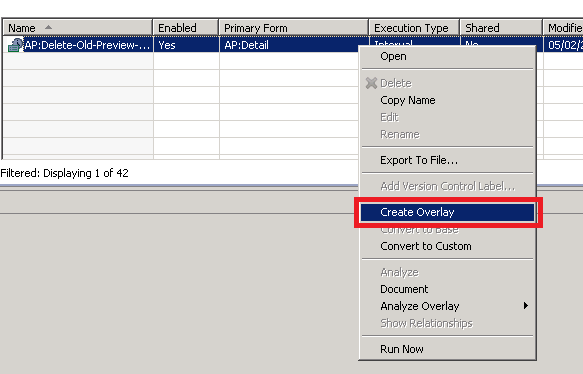

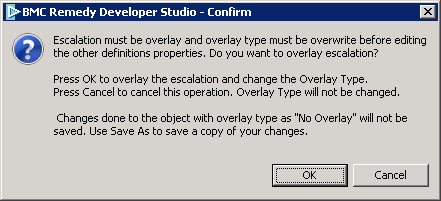

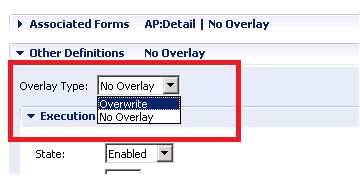

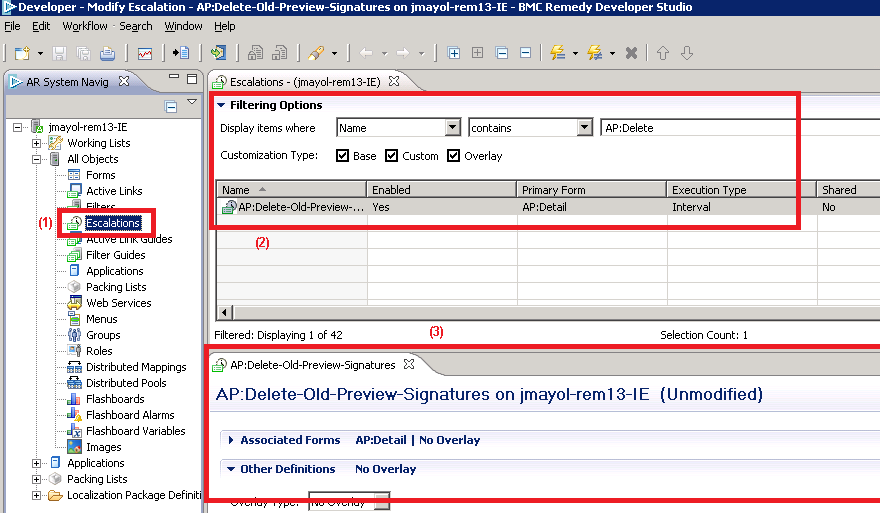

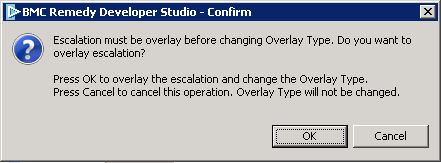

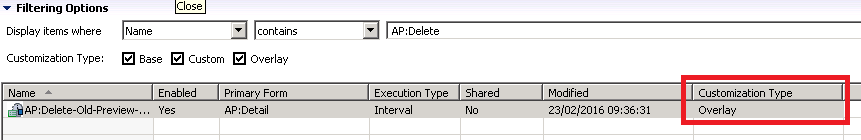

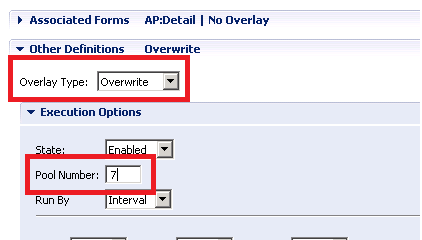

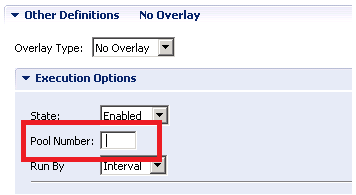

This knowledge article may contain information that does not apply to version 21.05 or later which runs in a container environment. Please refer to Article Number 000385088 for more information about troubleshooting BMC products in containers. NOTE: To add/modify an Escalation Pool requires to create an overlay for the Escalation, so this may be best performed outside business hours since it is an Admin change. The procedure is as follows. 1 Login to Developer Studio and select the Escalations from the All Objects tree 2 Search the Escalation to be modified 3 Double Click the Escalation to open it 4 In the section Other Definitions > Execution Options we find the setting where a Pool Number can be set for the specific escalation 5 Since we will modify the current settings of the escalation, if we try to set a Pool number right away we will get the following message: Or if we try to change the Overlay Type from No Overlay to OverWrite : We will get the message: Which basically is telling us that the Escalation needs to be overlaid as we are doing some changes on it. The overlay will be created if press OK in both messages depending the scenario. The overlay can also be created by right click on the Escalation search results list and select Create Overlay : After the Overlay has been created the Customization Type for the Escalation will reflect being an Overlay (originally is set as unmodified). 6 Once the Overlay is created we can change the Overlay Type and set a Pool Number: Note: If exact times are needed for your escalations (example: exactly every five minutes), the Pool Number must be a number which is not used already if we want to have a specific Escalation(s) running on a dedicated Escalation Pool. Alternatively, if precision is not needed for your escalations (example: around/about every five minutes), you can also update a Pool Number to run Escalations using also the same Pool Number. It is possible to check which escalations are running on which Escalation Pool in Developer Studio. To check this and also to know how many Escalation Pools are configured please check the article bellow: Remedy - Server - How to check the number of Escalation Pools configured in AR System So, if a dedicated Escalation Pool is being added for an Escalation, this way we can check the Escalation Pool is not already defined and have other Escalations assigned to it to avoid possible conflicts having escalations running on the same Pool. 7 Save the Escalation. 8 We need also ensure the Escalation Threads in AR System are configured correctly. To have a dedicated thread for each Escalation Pool we need to have the Escalation Queue threads set with same amount of existing number of Escalation Pools. For example, if we have 7 Escalation Pools in total, then set the number of Escalation threads also to 7. To do this follow these steps: In the AR System Home Page go to System > General > Server Information In the Ports and Queues tab locate the Escalation queue (390603). As commented earlier, set the amount of threads to be equal as the number of existing Escalation Pools. Set the minimum and maximal threads with the same value. As per the example above, if we have 7 Escalation Pools we set the Escalation Thread count in the Escalation Queue with the value 7 for the min. and max. settings. Apply these changes and press OK. |
