1- Remote in the outpost that is meant to discover these databases

2- Ensure that the 64-bits version of Oracle JDK/JRE or OpenJDK (version 8 or later) is installed on the Outpost server.
This installation is required for JDBC discovery. To identify where and which version of java is available on the outpost, go to Control Panel > Java then click on the tab java then click on the button "View". e.g: C:\Program Files\Java\jre1.8.0_192\bin\javaw.exe

It is also possible to run the following command line through the command prompt (cmd) on the outpost to confirm java is running the relevant 64-bit version:

java -version

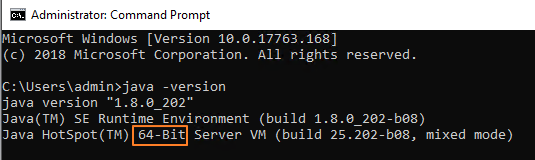

If java 64-bit is installed, the output should look like this:




Notes:
- This is the output if the official Oracle java 1.8+ is installed. Results may differ in case openjdk is installed instead.
- OpenJDK 11.0.15 LTS can be downloaded from microsoft-jdk-11.0.15-windows-x64.zip or microsoft-jdk-11.0.15-windows-x64.msi

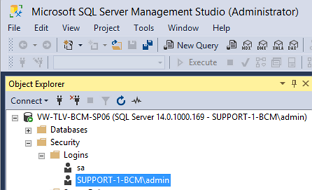

4- Make sure the user exists in Microsoft SQL Server, and that it has the proper permissions to read the databases, e.g (check with the DBA for more information):


5- Download the Microsoft SQL Server 8.2 driver from here - Select sqljdbc_8.2.2.0_enu.tar.gz, or click on this direct link.

6- In the downloaded zip archive, go to sqljdbc_8.2.2.0_enu.zip\sqljdbc_8.2\enu\auth\x64 and extract the file mssql-jdbc_auth-8.2.2.x64.dll file. Then copy the mssql-jdbc_auth-8.2.2.x64.dll to the java bin directory (refer to step 2)

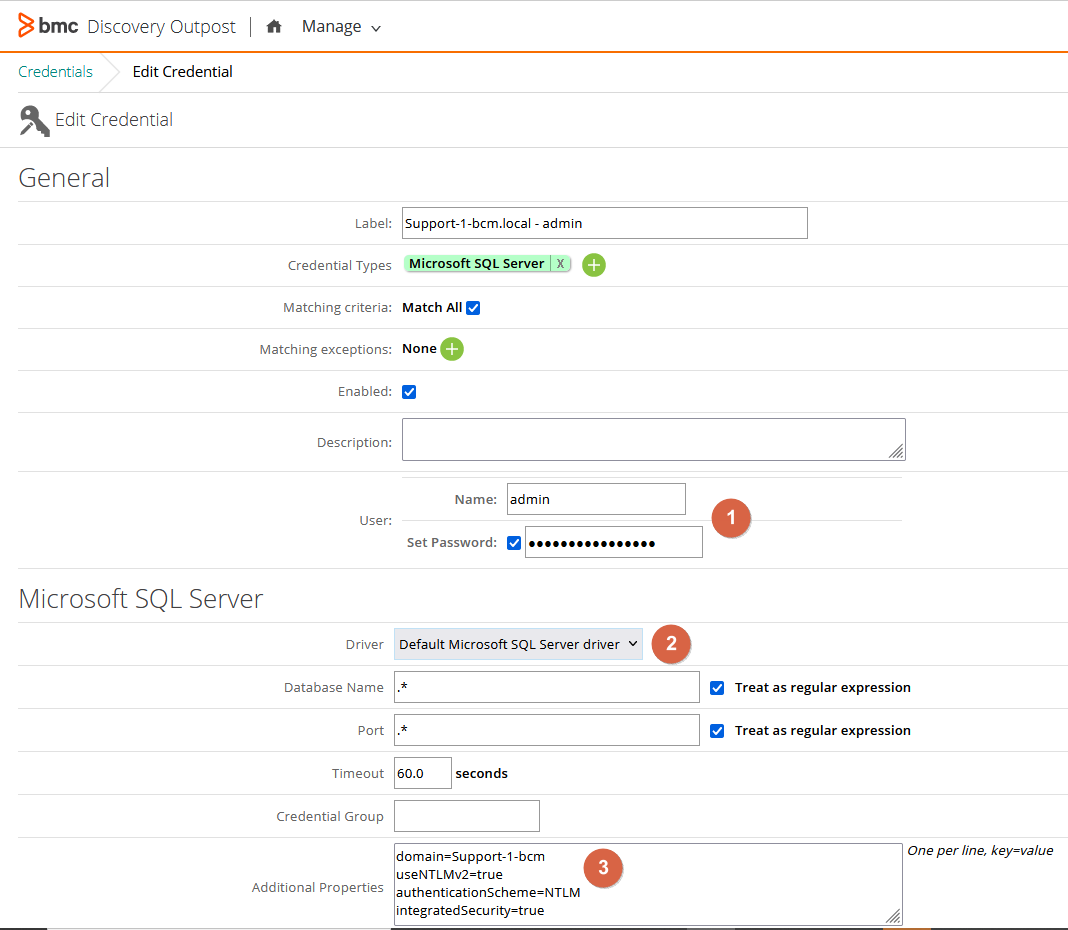

7- Go to Manage > Credentials in the UI, then select the relevant Microsoft SQL Server database credential, then:




- (1) set the user: do NOT add the domain there (nor the name of the device if a local account is set instead), only the username / and password
- (2) select the required Microsoft SQL Server driver (the default one should work, no need to create a custom MS SQL driver)
- (3) add the following to the field "Additional Properties":


domain=_DOMAIN_NAME_
useNTLMv2=true
authenticationScheme=NTLM
integratedSecurity=true


Notes:
- If no domain is used, do not add the line domain=_DOMAIN_NAME_
- If a domain has to be used, replace _DOMAIN_NAME_ first.

8- Test the credential again

SCENARIO 1:
Discovery is on the same domain at the target server


1. Create a new MSSQL driver using the default mssql jar file.  In the new driver, change the JDBC String Template to the following:


jdbc:sqlserver://;serverName={address};port={port};databaseName={name};authenticationScheme=NTLM;integratedSecurity=true

2. Create the MSSQL credential. The domain name will not be needed in the username as it's set in the MSSQL driver . Be sure to select the new SQL driver that was created.
