BMC Helix Innovation Studio - Data Management Console An error Occurred While Uploading The File. Check The File Name Or The Contents In The File

Knowledge Article

Article Number

000410676

Old Article Number

Article Type

Solutions to a Product Problem

Title

BMC Helix Innovation Studio - Data Management Console An error Occurred While Uploading The File. Check The File Name Or The Contents In The File

Summary

Product

BMC Helix Platform

Component

Innovation Suite - Converged

Applies to

Allversions

Problem

Getting below error when trying to Import data to a custom record definition in Innovation Studio Data Management Console

Error
An error occurred while uploading the file. Check the file name or the contents in the file.

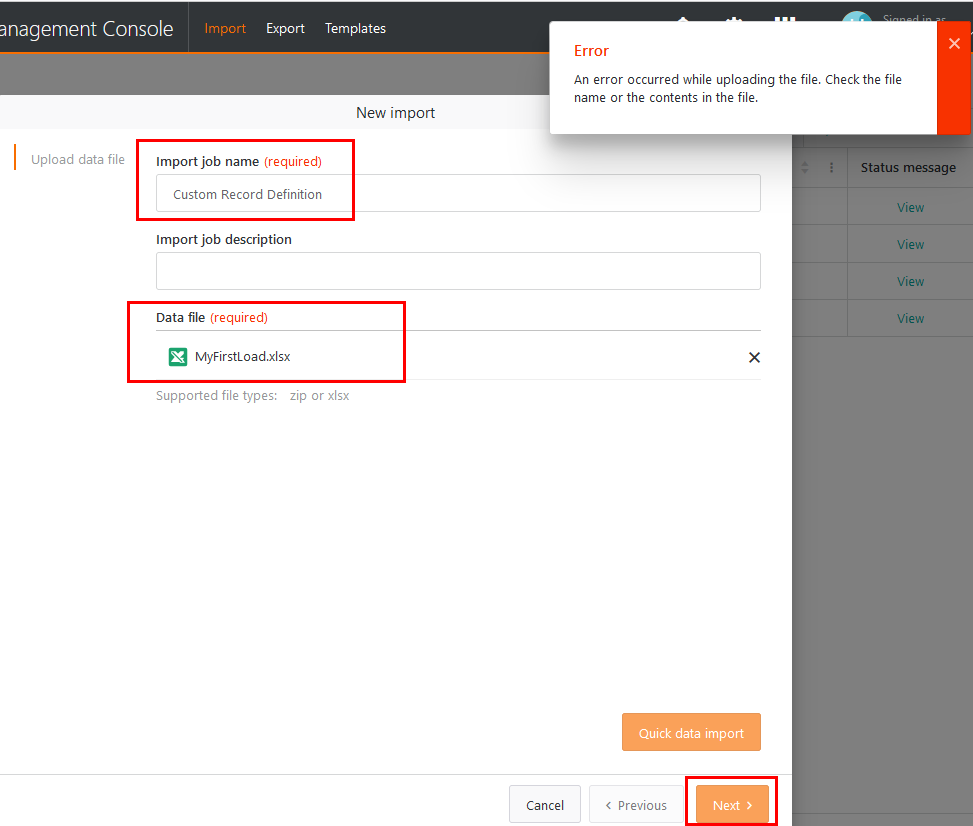

Steps to replicate

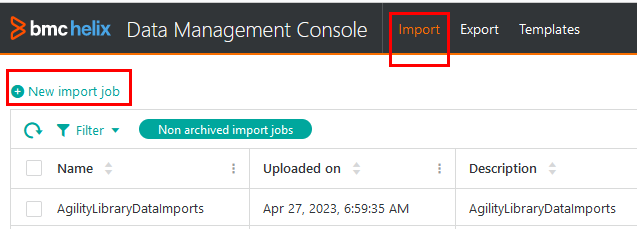

1.- Login to Innovation Studio Data Management Console: https://service_name-is.onbmc.com/helix/index.html#/com.bmc.arsys.rx.dataload/view/com.bmc.arsys.rx.dataload:Data%20Import

2.- Click on Import > New import job

3.- Name the import job and add the excel file to it then click on "Next >" you wills see the error

Cause

Wrong excel file structure

Solution

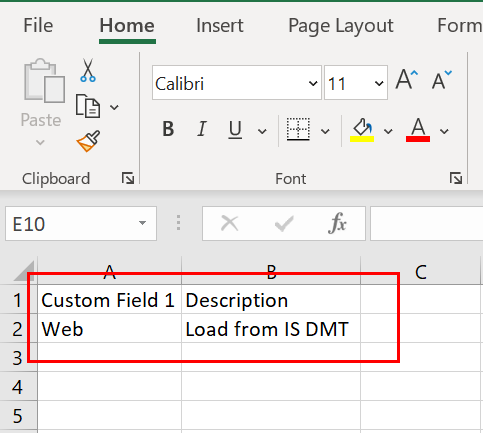

"MyFistLoad.xlsx" strcuture looked like below

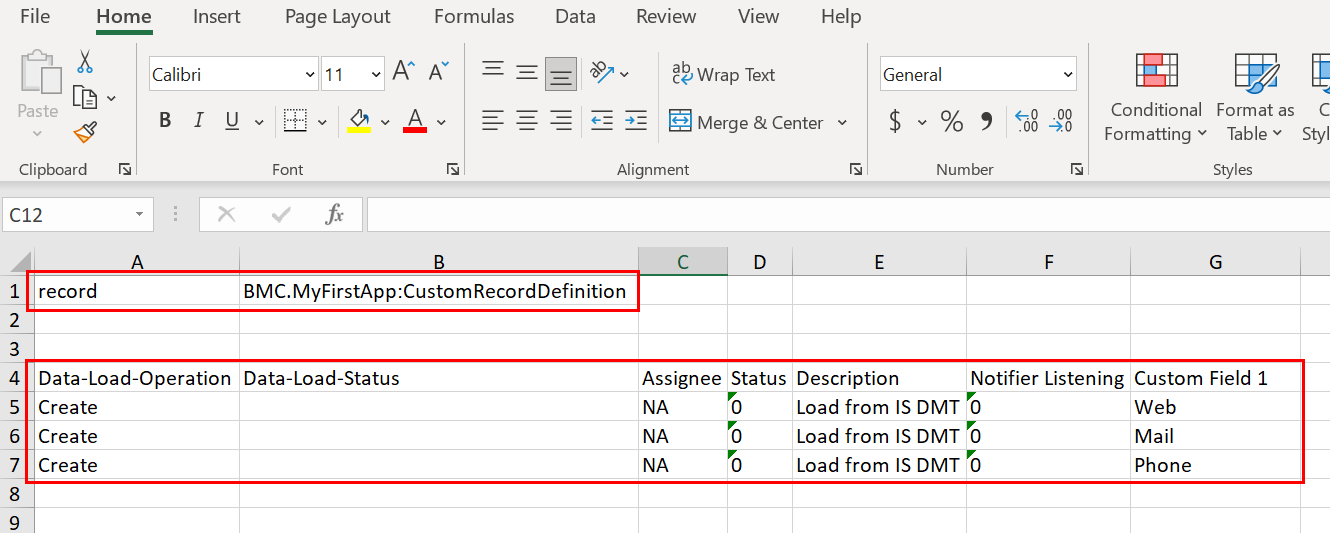

Use below structure instead which includes:

Record Definition Name: record ApplicationID:RecordDefinitionName
Data Load Fields: Data-Load-Operation, Data-Load-Status
All Fields you would like to load
Value for those fields

NOTES:

Check "Importing custom record data into your application" for further information.

File attached to this KA

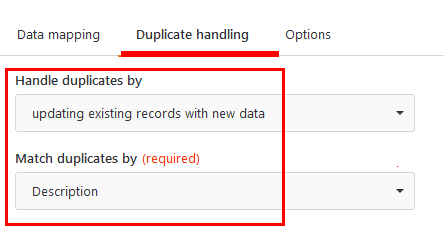

For "Data-Load-Operation" column you can only use "Create" but to handle updates you can use "updating existing records with new data" and then set the key field in the Import Job configuration

Attachment(s):

MyFirstLoad
