BMC Atrium CMDB Suite: Increasing Java heap size for Spoon & Atrium Integrator (Includes Video)
How to increase the java heap size if there are java memory issues when running Atrium Integrator jobs.
BMC Atrium CMDB Suite
Atrium Integrator 8.x, 9.x, 18.x, 19.x

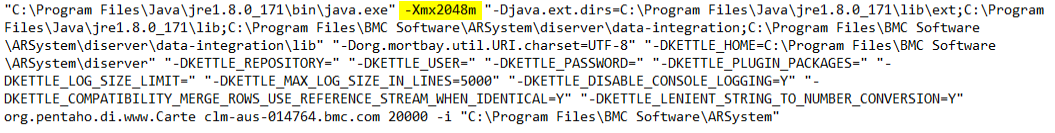

This knowledge article may contain information that does not apply to version 21.05 or later which runs in a container environment. Please refer to Article Number 000385088 for more information about troubleshooting BMC products in containers. Sometimes you will see below error message after running Spoon or AI Job : java.lang.OutOfMemoryError: Java heap space If you are getting this error while running the job from Atrium Integrator console then you can increase heap size for Carte server process in armonitor.cfg file. Here is the screenshot : Also you can follow below steps to improve performance of AI : https://docs.bmc.com/docs/display/public/ac91/Improving+performance+of+Atrium+Integrator If you are running the job from Spoon then you can increase Java heap size for Spoon with below steps : - Close the Spoon client. - Go to -> <ARSystemInstallDir>\diserver\data-integration - Edit the Spoon.bat file. - Search for PENTAHO_DI_JAVA_OPTIONS in that file. - Change "-Xmx512m" option to "-Xmx2048m" See Also: BEST FAQ on BMC CMDB Suite - Atrium Integrator |
