UPI (Unified Product Installer) upgrade fails with the following error:



SCENARIO #1:
<bsainstallupgrade.log> shows the following:

(Mar 21 2021 03:39:11.239 PM +1000),SEVERE,com.bmc.install.product.bladelogic.upgrade.mig.DeploymentOptionsMigratorRunner,
  THROWABLE EVENT {Description=[Options migration failed for host [jobserver01].]},
  Throwable=[java.lang.NullPointerException
 com.bmc.install.product.bladelogic.upgrade.mig.DeploymentOptionsMigrator.createNewValueForSpecificCase(DeploymentOptionsMigrator.java:317)
 ...
(Mar 21 2021 03:39:11.309 PM +1000),SEVERE,com.bmc.install.product.bladelogic.upgrade.BlUpgStatelessConfigurationCreator,
  LOG EVENT {Description=[Pre Upgrade execution could not be completed Successfully. Pre Upgrade Execution Summary:
Configuration Collection: STATUS_SUCCESSFUL
Configuration Migration: STATUS_NOT_ATTEMPTED
Options Migration: STATUS_NOT_ATTEMPTED
Application Server Stop Execution: STATUS_NOT_ATTEMPTED
Database Migration: STATUS_NOT_ATTEMPTED
Persisting Configuration into Database: STATUS_NOT_ATTEMPTED
]}
...

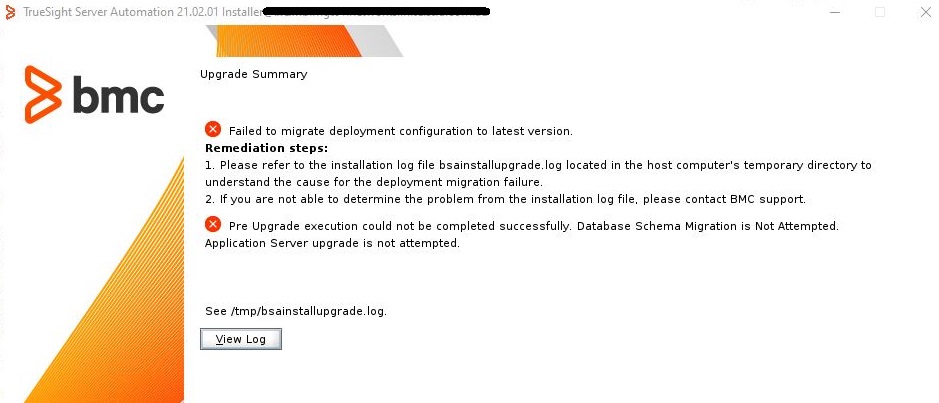

(Mar 21 2021 03:39:11.756 PM +1000),INFO,com.bmc.install.product.bladelogic.task.upgrade.BlUpgCollectPersistConfigErrorsTask,   LOG EVENT {Description=[Validation error],Detail=[Failed to migrate deployment configuration to latest version.<br><b>Remediation steps:</b><br>1. Please refer to the installation log file bsainstallupgrade.log located in the host computer's temporary directory to understand the cause for the deployment migration failure.<br>2. If you are not able to determine the problem from the installation log file, please contact BMC support.
CONFIGURATOR_EXECUTION_FAILED]}
...

SCENARIO #2:
<bsainstallupgrade.log> shows the following:

(Mar 19 2024 12:47:03.487 PM +0800),SEVERE,com.bmc.install.product.bladelogic.upgrade.BlUpgStatelessConfigurationCreator,
  LOG EVENT {Description=[Pre Upgrade execution could not be completed Successfully. Pre Upgrade Execution Summary:
Configuration Collection: STATUS_NOT_ATTEMPTED
Configuration Migration: STATUS_NOT_ATTEMPTED
Options Migration: STATUS_NOT_ATTEMPTED
Application Server Stop Execution: STATUS_NOT_ATTEMPTED
Database Migration: STATUS_FAILED
Persisting Configuration into Database: STATUS_NOT_ATTEMPTED
]}
(Mar 19 2024 12:47:03.487 PM +0800),SEVERE,com.bmc.install.product.bladelogic.task.upgrade.BlUpgPersistConfigurationIntoDatabaseTask,
  THROWABLE EVENT {Description=[Database migration failed.],Detail=[Database migration failed.]},
  Throwable=[com.bmc.install.product.bladelogic.common.BladelogicUpgradeException
  com.bmc.install.product.bladelogic.action.others.BlDatabaseUpgradeAction.execute(BlDatabaseUpgradeAction.java:86)
  com.bmc.install.product.bladelogic.upgrade.BlUpgStatelessConfigurationCreator.runDatabaseMigration(BlUpgStatelessConfigurationCreator.java:257)
  com.bmc.install.product.bladelogic.upgrade.BlUpgStatelessConfigurationCreator.execute(BlUpgStatelessConfigurationCreator.java:81)
  com.bmc.install.product.bladelogic.upgrade.BlUpgradeManager.runPreUpgrade(BlUpgradeManager.java:138)
  com.bmc.install.product.bladelogic.task.upgrade.BlUpgPersistConfigurationIntoDatabaseTask.createStatelessConfiguration(BlUpgPersistConfigurationIntoDatabaseTask.java:173)
  com.bmc.install.product.bladelogic.task.upgrade.BlUpgPersistConfigurationIntoDatabaseTask.execute(BlUpgPersistConfigurationIntoDatabaseTask.java:96)
  com.bmc.install.task.InstallationTask.run(InstallationTask.java:93)
  java.base/java.lang.Thread.run(Unknown Source)]
...
(Mar 19 2024 12:47:03.800 PM +0800),INFO,com.bmc.install.product.bladelogic.task.upgrade.BlUpgCollectPersistConfigErrorsTask,
  LOG EVENT {Description=[Validation error],Detail=[Failed to migrate TrueSight Server Automation database.<br><b>Remediation steps:</b><br>1. Please refer blmigration.log file located in the <Installation Directory>/NSH/br directory.<br>2. Please refer to the installation log file bsainstallupgrade.log located in the host computer's temporary directory to understand the cause for the database migration failure.<br>3. If you are not able to determine the problem from the installation log file, please contact BMC support.
CONFIGURATOR_EXECUTION_FAILED]}

SCENARIO #3:
<bsainstallupgrade.log> shows the following:

SEVERE,com.bmc.install.product.bladelogic.fresh.BladelogicFreshInstallManager,
  THROWABLE EVENT {Description=[A component installation has failed.],Detail=[The SELECT permission was denied on the object 'sysjobs', database 'msdb', schema 'dbo'.]},
  Throwable=[com.bmc.install.product.bladelogic.common.BladelogicInstallException
  com.bmc.install.product.bladelogic.utils.BladelogicDBSchemaCreation.executeSql(BladelogicDBSchemaCreation.java:79)
  com.bmc.install.product.bladelogic.utils.BladelogicDBSchemaCreation.createDBSchema(BladelogicDBSchemaCreation.java:183)
  com.bmc.install.product.bladelogic.common.BladelogicInstallComponentsTask$BladelogicCallableTask.installComponent(BladelogicInstallComponentsTask.java:421)
  com.bmc.install.product.bladelogic.common.BladelogicInstallComponentsTask$BladelogicCallableTask.call(BladelogicInstallComponentsTask.java:296)
  com.bmc.install.product.bladelogic.common.BladelogicInstallComponentsTask$BladelogicCallableTask.call(BladelogicInstallComponentsTask.java:278)
  java.base/java.util.concurrent.FutureTask.run(Unknown Source)
  java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  java.base/java.lang.Thread.run(Unknown Source)]

SCENARIO #1:

Check 'appserver-options.properties' under '<appserver install dir>/NSH/br/deployments/<DeploymentName>/options' folder and compare that with the one on other non-problem appserver.

If the content of the file is different, copy over the content of this file and re-run the installer.

Other potential cause would be backup/invalid deployment folder under '<appserver install dir>/NSH/br/deployments' folder.

Thus try moving (take a backup first) the following deployment folders (if exists) OR any duplicate deployments into a temp location and re-run the UPI installer.
_util
_postmig

Please refer to the following doc page to find more information on appserver deployments & the troubleshooting UPI upgrade issues:
About Application Server deployments and profiles
Troubleshooting UPI Upgrade issues

SCENARIO #2 and #3:

If the TSSA database is on SQL server, make sure that TSSA database user has 'sysadmin' role granted and DB file is configured with 'Autogrowth' enabled and there is sufficient disk space available.

If Oracle database is used, refer to the following doc page to find the list of required database permissions and make sure that TSSA database and user are configured accordingly:
List of required database permissions

If the UPI still fails with the same error, kindly raise a case and share following details:
- Source and destination TSSA versions of the upgrade
- The <appserver install dir>/NSH/br/deployments/<DeploymentName>/options/appserver-options.properties file from all the impacted and working appservers
- 'bsainstallupgrade.log' file from the TSSA upgrade
