Steps to run the Configuration Checker Utility and getting the output results.

This knowledge article may contain information that does not apply to version 21.05 or later which runs in a container environment. Please refer to Article Number 000385088 for more information about troubleshooting BMC products in containers.

1- Log on to EPD and download the 9.1.00.001 latest config check utility (approx. size 55MB)

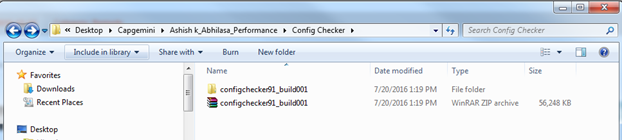

2- Once downloaded, extract to any location like C or D drive.

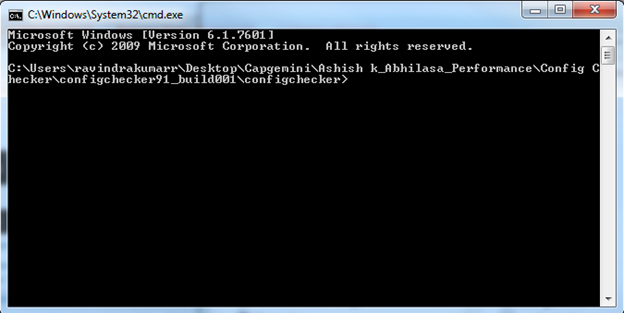

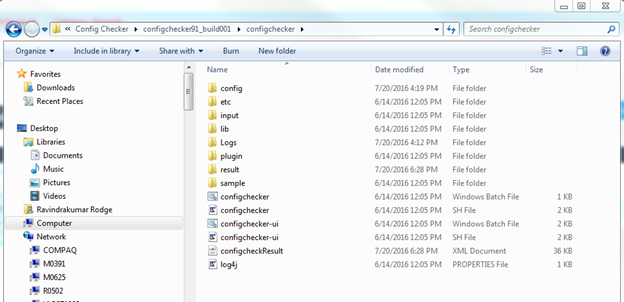

3- Now open command prompt and navigate to the location where configchecker91_build001 is extracted.



4- Open command prompt to the same location:

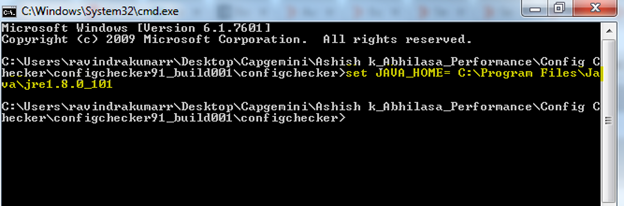

5- Set JAVA_HOME path as below:
Set JAVA_HOME=C:\Program Files\Java\jre1.8.101

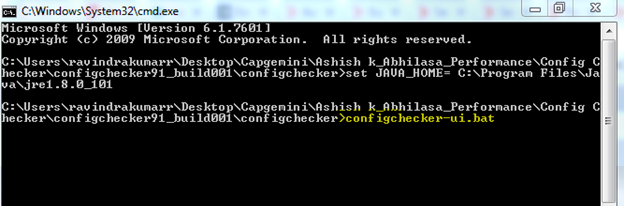

6- Now Run configchecker-ui.bat from command prompt like below:

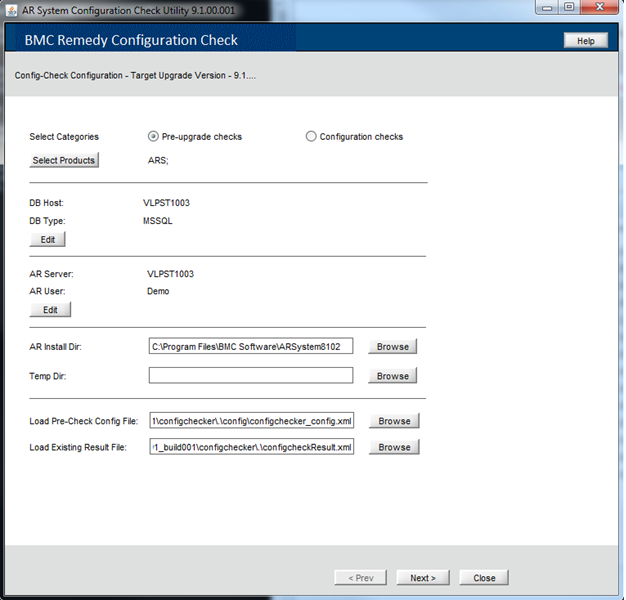

7- If everything is correct then it will load the utility and will open as below:


You can run the config checker utility in 2 modes.

• Pre-upgrade checks
• Configuration checks

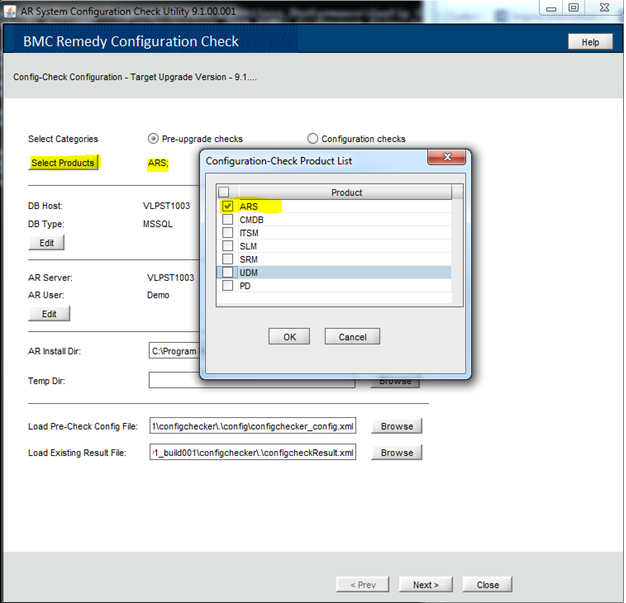

8- Select Products: To select what all products needs to be checked.

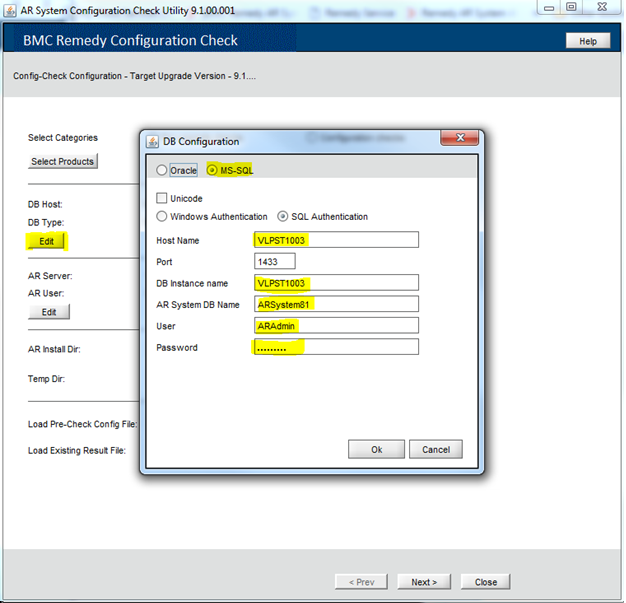

9- Give the DB connection details where the database is installed and running.

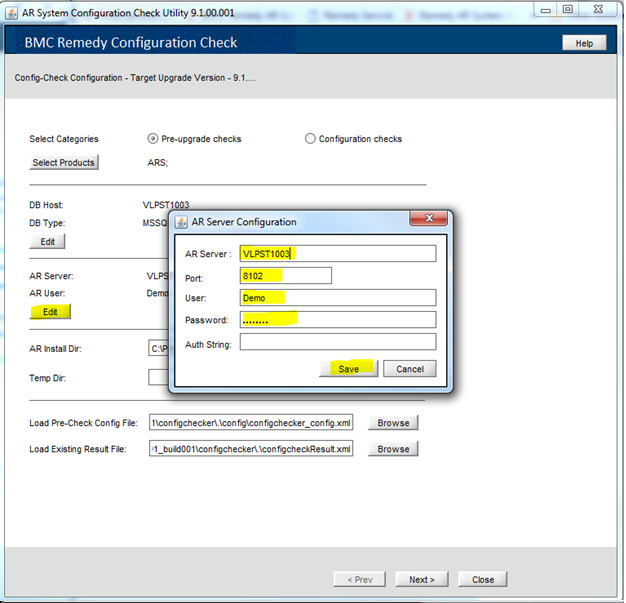

10- Give AR Server details as below:

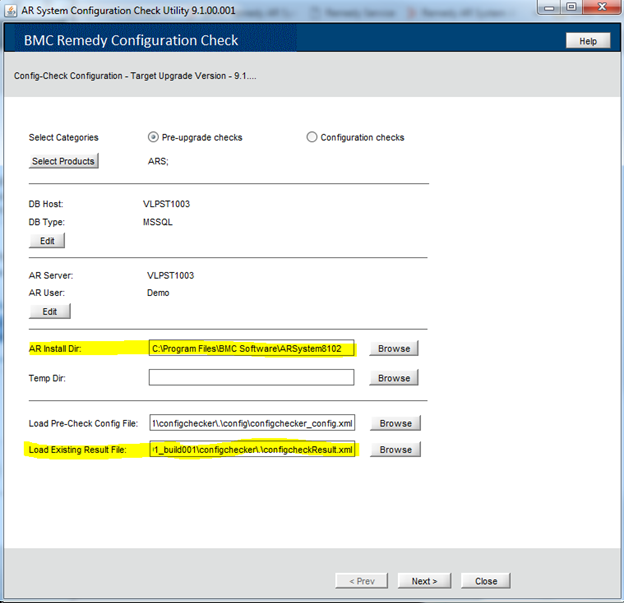

11- Give AR Install Dir path as location where AR Server is installed.


Once done click next.

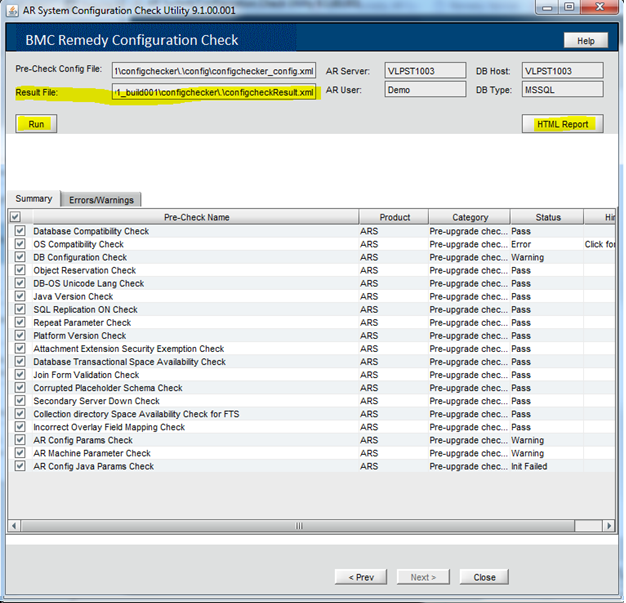

12- In the below screen -> click Run and once the Run is completed click on HTML Reports to get the result in HTML format.

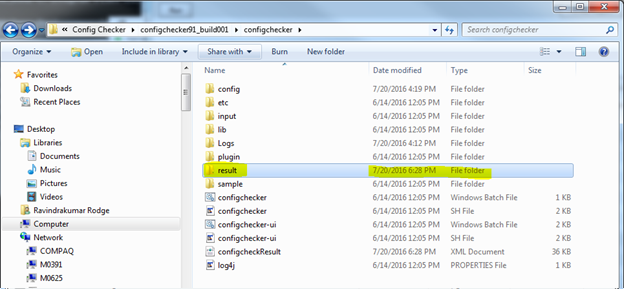

The same result is also available under result folder in config checker utility directory as below.

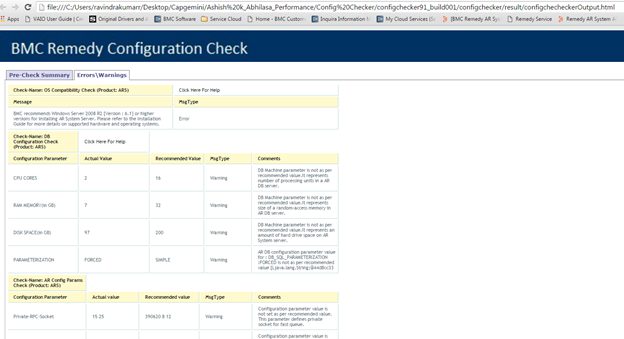

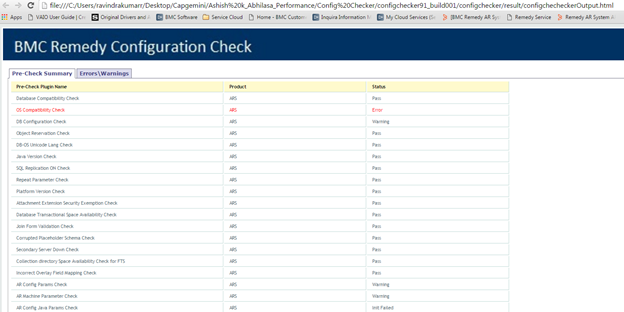

13- When you open the report it look like below:






Related Documentation:
 https://docs.bmc.com/docs/display/public/brid91/Preupgrade+checks+and+configuration+checks


Attached also the documented steps above.
